| Brand Name : | JIEFAN |
| Model Number : | LSKJ550 |
| Certification : | CE SGS |
| Price : | FOBQINGDAO port:$18000/set |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 20 sets per month |
| Delivery Time : | 30 working days |

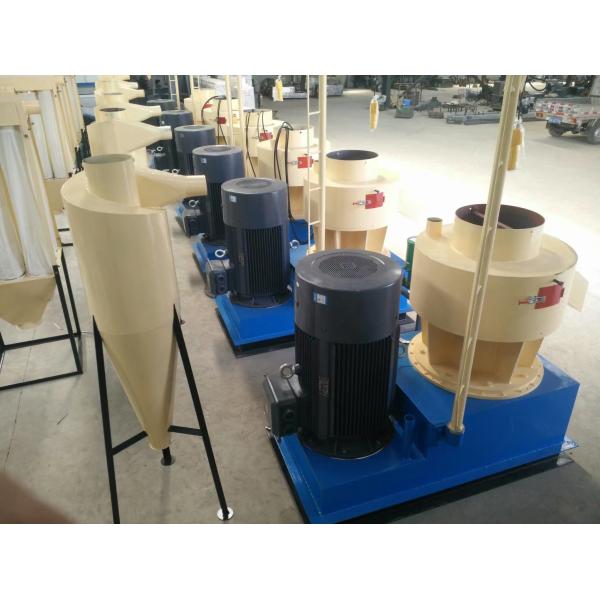

vertical ring die biomass wood pellet mill production line LSKJ550 1500kg per hour
Raw material:sawdust,rice husk,wood trunks etc
Mositureof raw material :30%-50%
Capcity:1500kg per hour
NO | Product | (set) | Power (kw) 380v/50hz | Remark It include |
| 1 | drum model wood chipper system DX-215 | 1 | 1.5+3x2+6+55 | 8m inlet conveyor 6m outlet conveyor Width of conveyor: 0.5m |
| 2 | HIGH EFFICIENCY HAMMER MILL SYSTEM GT65-75 | 1 | 45+11+2.2 | With cyclone,dust collector system etc |
| 3 | CONVEYOR 8M(L)X0.5M(W) | 1 | 1.5 | To deliver wood sawdust to dryer |
| 4 | Hot air stove ZT80 | 1 | To produce at your workshop | |
| 5 | DRUM DRYER DIAMETET:1.2M LENGTH:12M | 1 | 11+5.5 +15 | It is with dust collector system |
| 6 | Belt conveyor 8m x 0.5m | 1 | 1.5 | To deliver dry wood sawdust to storage |
| 7 | Storage 4m3 | 1 | To load dry wood sawdust | |
| 8 | Screw conveyor Diameter:220mm Length:3m | 1 | 1.5 | To deliver dry wood sawdust to pellet mill machine |
| 9 | Pellet mill machine LSKJ550 Capacity:1200-1500kg per hour | 1 | 90 + 0.75+0.37+0.6 | With cyclone,dust collector system To press dry wood sawdust into pellet With auto oil lubricator +lifting device to change mould |
| 10 | Conveyor 8m x 0.5m | 1 | 1.5 | To deliver wood pellet to cooler machine |
| 11 | Cooler | 1 | 5.5+1.5+0.75 | With dust collector system ,cyclone etc With sieve screen |
| 12 | Conveyor 8mx 0.5m | 1 | 1.5 | To deliver cooled wood pellet to package machine |
| 13 | Package machine | 1 | 3 | To package wood pellet |
|
|
